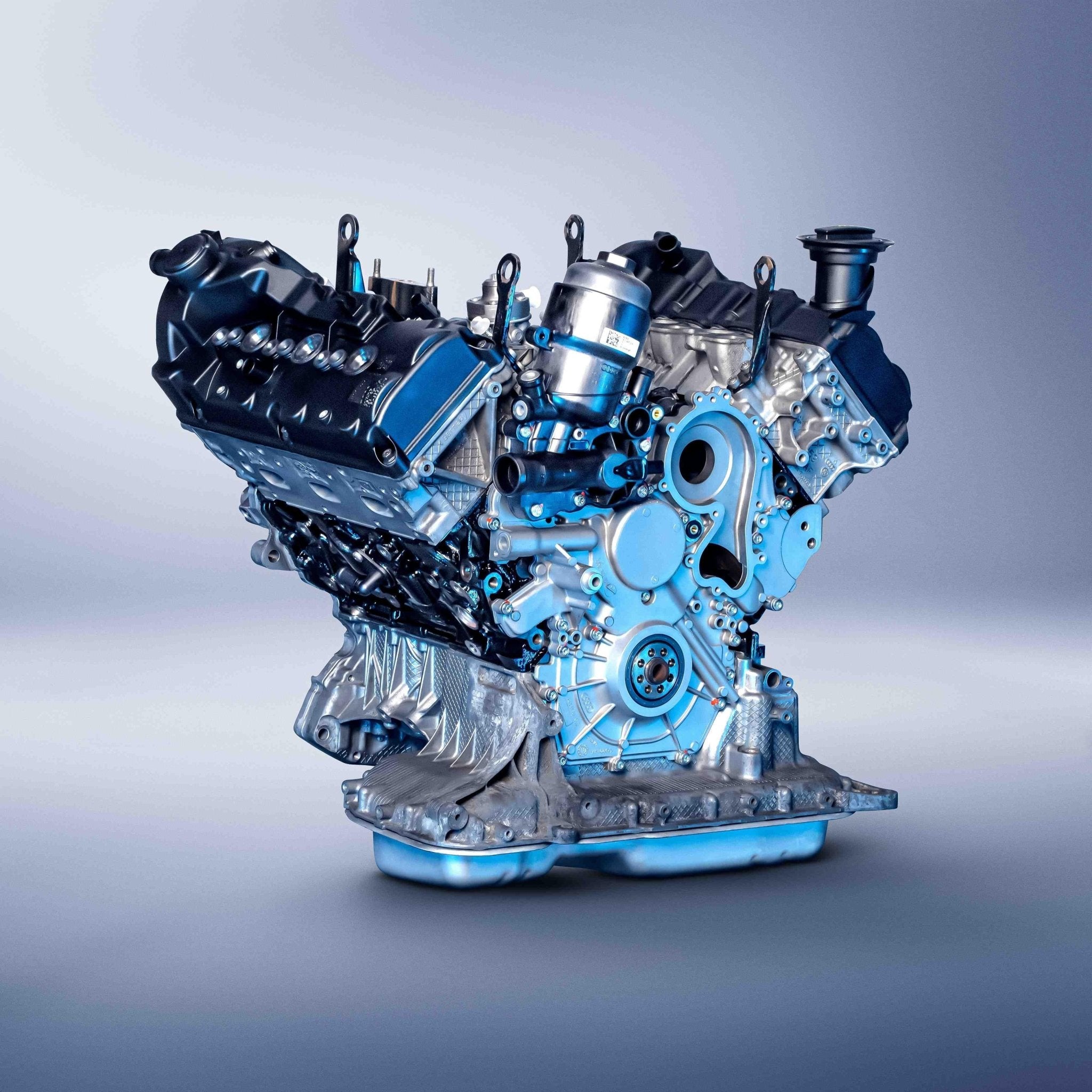

Engine overhaul / replacement engine 3.0 TDI CRTD – Audi: A6, A7

Better than new – Our MIK-UPGRADES

The work carried out on this engine includes not only the renewal of all wear parts, screws, and seals, as well as the machining of the flat and running surfaces, but also the replacement of components that were factory-fitted with Vulnerabilities belegt sind und die Limit the lifetime of the motor .

The following MIK upgrades are necessary to Significantly extend the lifetime :

Timing chain
The increased wear of the timing chain is largely related to the design of the chain and the freedom of movement of the chain links on the guide rails. A modified chain design, as well as a special guide rail geometry, ensure maximum lifetime the timing chains in this engine.

Reinforced pistons
When driven with increased performance or sportily, this engine tends to suffer from piston damage in the ring zone area. It is not uncommon for oil consumption to reach 0.5L/1000km or more, and compression as well as power drop significantly. The increased temperature in the combustion chamber then mainly stresses the pistons and valves. Modified pistons, improved piston rings, and a specially honed cylinder surface provide relief.

High-quality bearing shells
As part of the overhaul, all components are precisely measured and processed. The bearing clearance between the individual components is adjusted to lifetime and performance set and thus ensures an especially smooth engine operation. In combination with high-quality bearing shells, this engine is also ideally suited for the sporty driver.

Overhaul scope – no more possible!

Main bearing, connecting rod bearing, thrust washers

Piston at full overhaul

Piston rings
Cylinder bores
Connecting rods

Crankshaft with complete overhaul

Storage aisle with complete overhaul

Oil pump
Ignition drive (complete)
Shaft seals
Cylinder head gasket, screws
Sealing surfaces
Valves, Guides, Shaft Seals
Hydraulic lifters, roller rocker arms

Camshafts at full overhaul

Oil spray nozzles

Stud bolts

Pulley
Oil pan
Chain cover
Ultrasonic Cleaning

Soda Blasting with complete overhaul

Buffing & Polishing
Face milling

Drilling & Honing with complete overhaul

LIVE Documentation Engine Overhaul

This offer is for the overhaul of your engine. A replacement engine can be supplied upon request!
